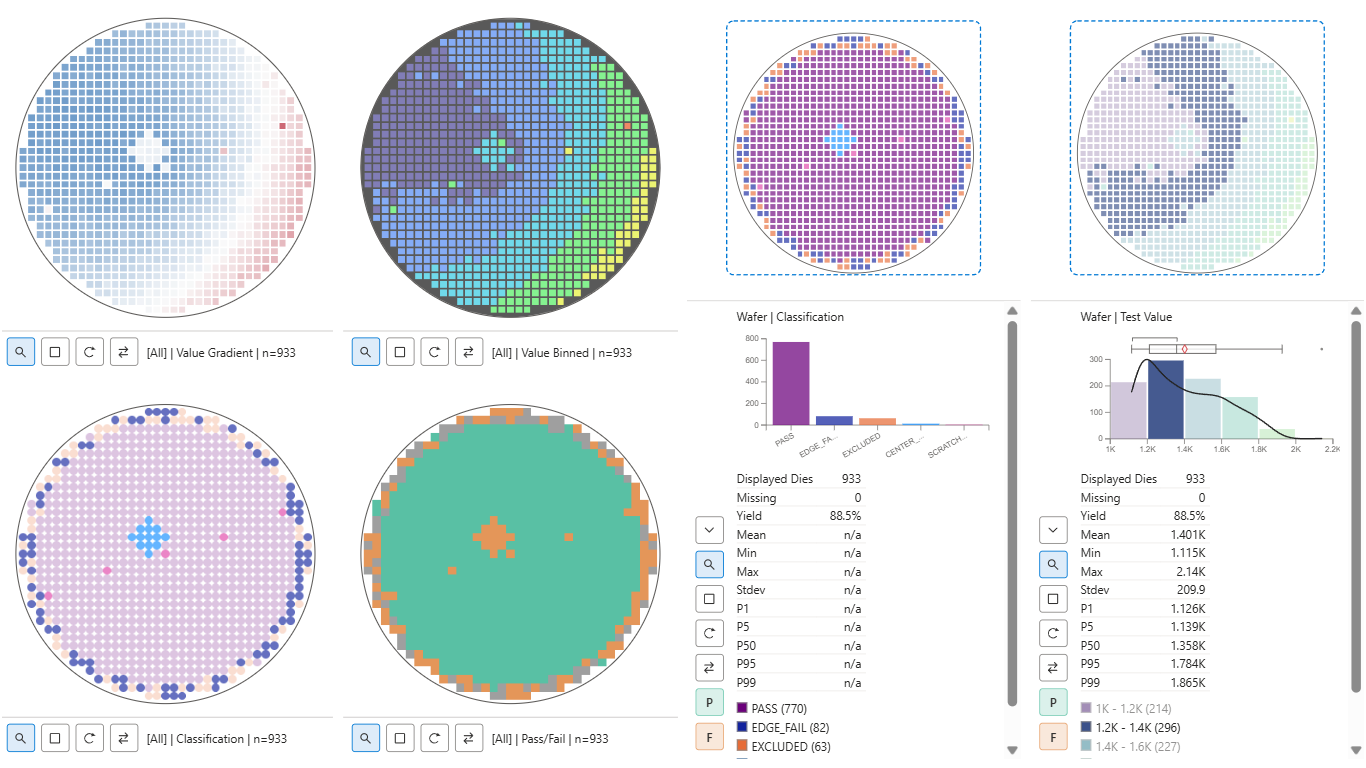

Wafer Map is a Power BI custom visual for semiconductor wafer maps, die value maps, bin maps, yield analysis, failure patterns, and process capability.
Bind Die X and Die Y for a true 2D wafer map, or leave Die Y unbound for an X-only sequence grid.

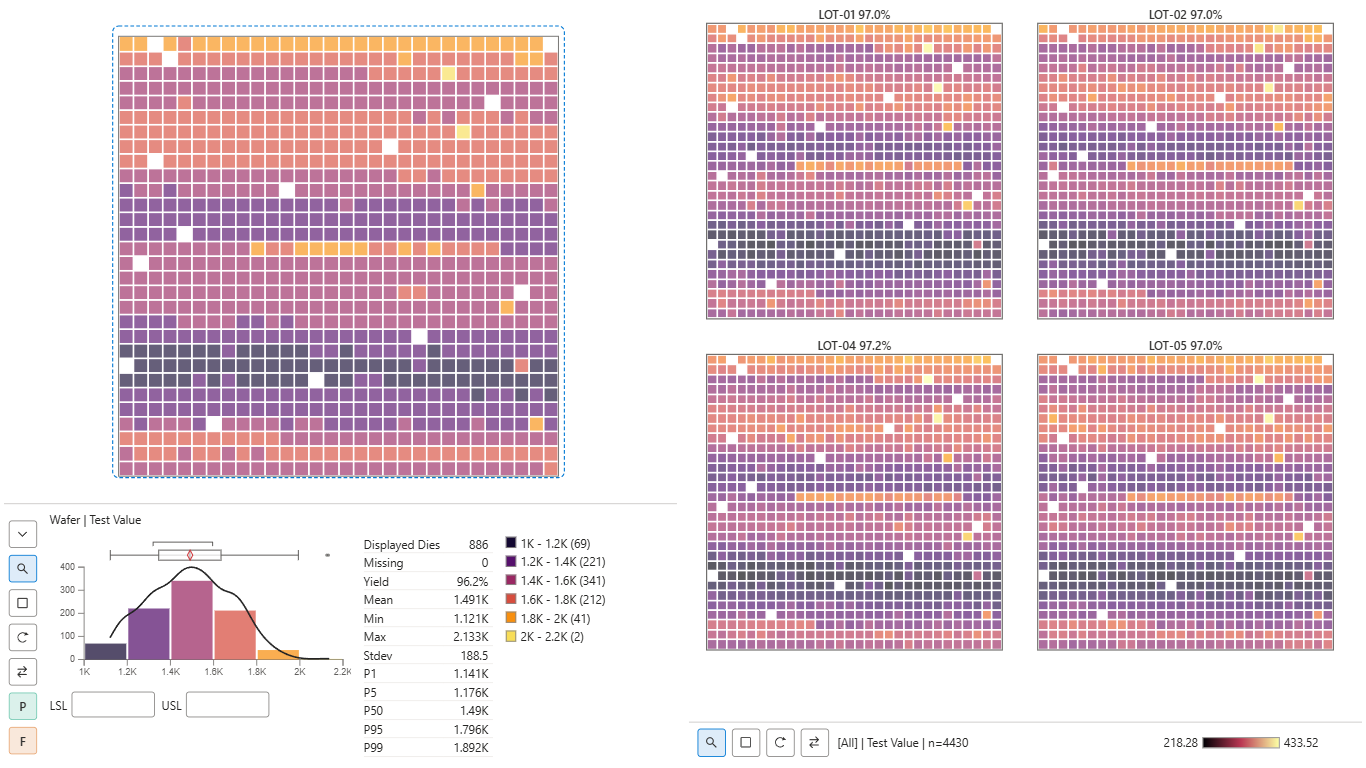

Visualize categorical classifications, binned metric ranges, or continuous numeric die values and switch among bound fields.

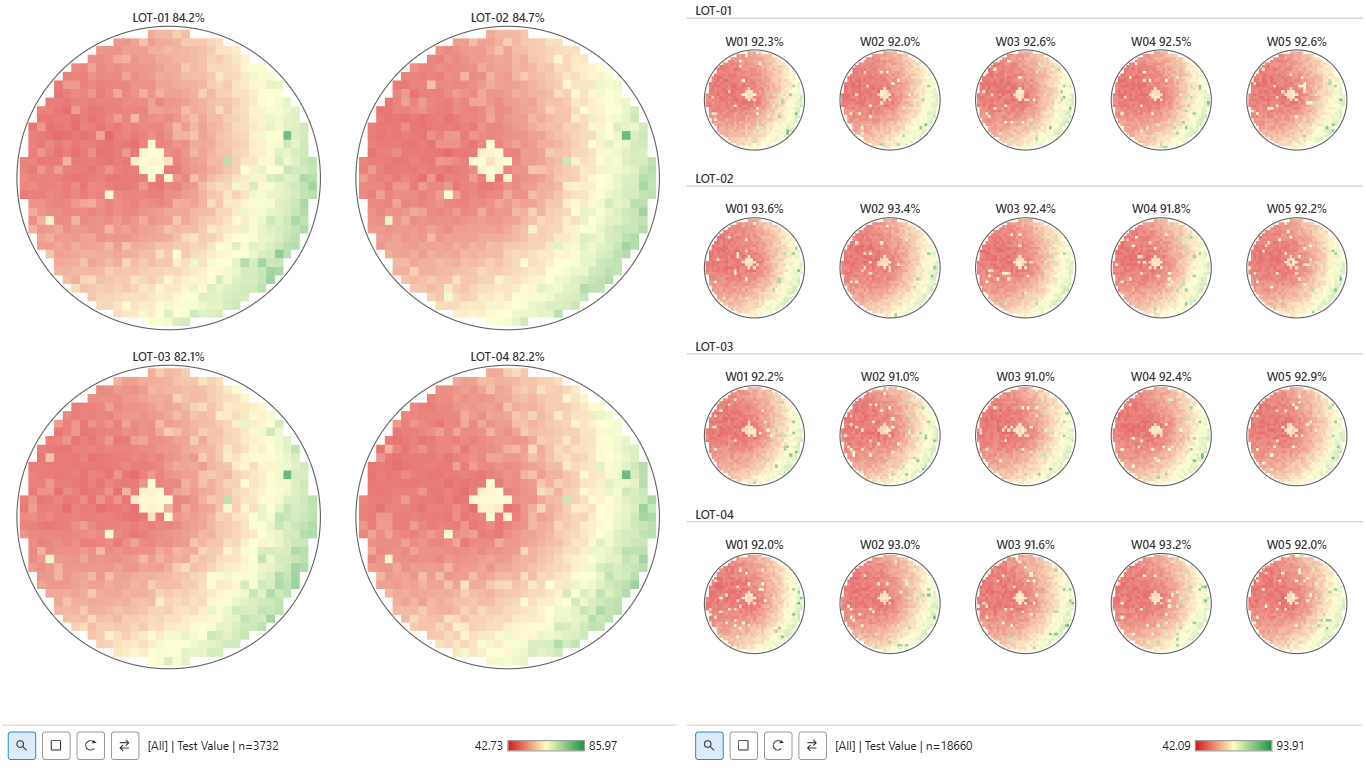

Use wafer, lot, station, batch, panel, or other hierarchy fields to organize and compare the current Power BI scope.
Review missing dies, duplicate coordinates, invalid rows, row limits, exclusions, and count mismatches directly in context.

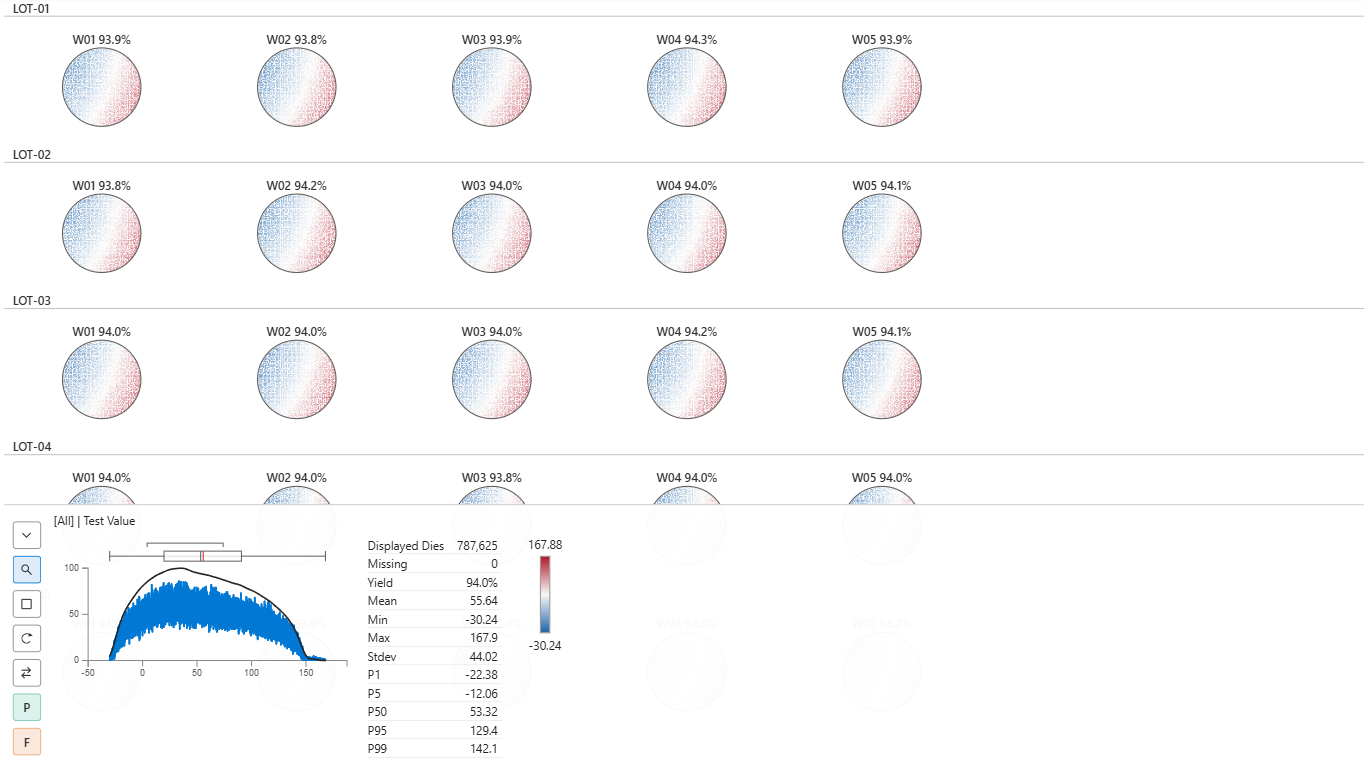

Use summary statistics, legends, selection, wafer focus, and distribution views to investigate spatial patterns and yield loss.

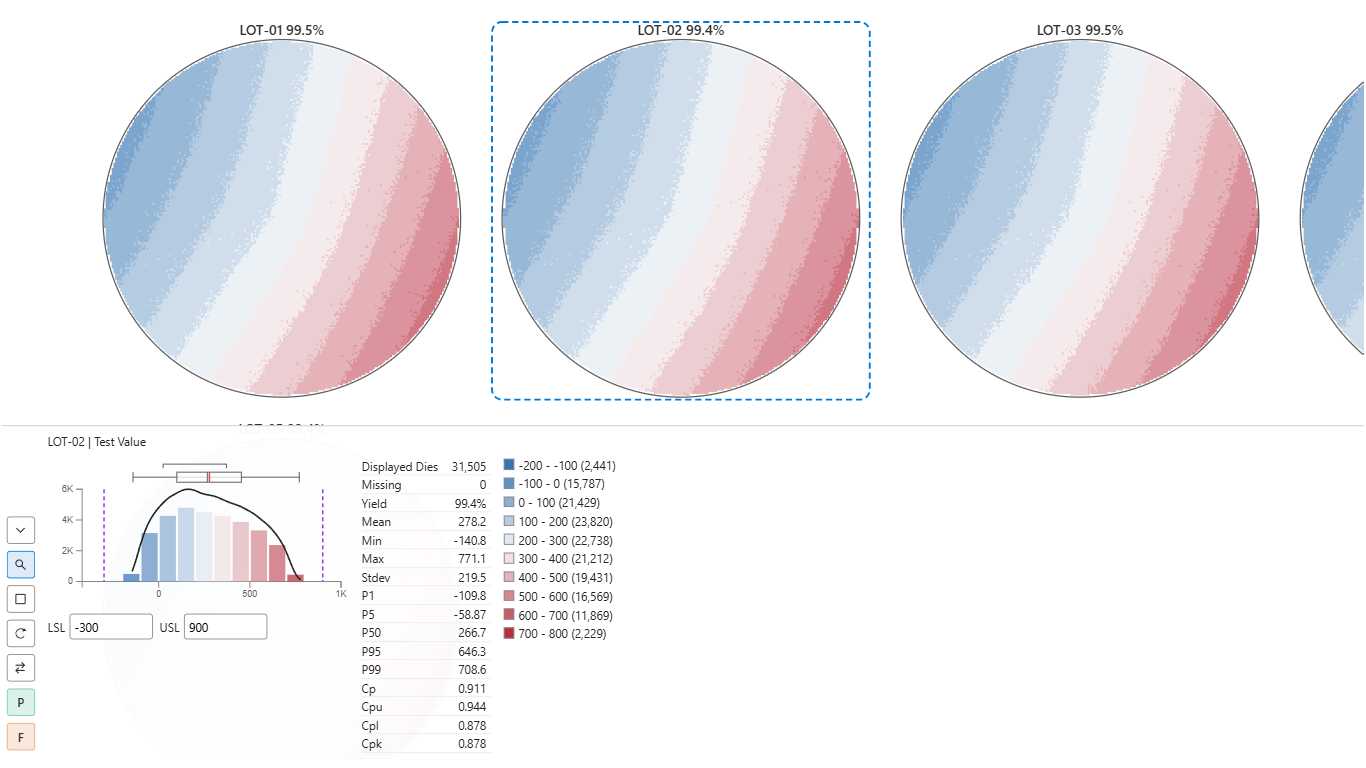

For numeric die values, enable limits and review Cp, Cpu, Cpl, and Cpk when enough valid data is available.
Typical workflows
Getting started
Prepare die-level tabular data before it reaches the visual.
Bind Die X as the required coordinate or sequence field.
Bind Die Y for a true 2D wafer map, or omit it for an X-only sequence grid.
Optionally bind Wafer hierarchy, Die Value, Die Classification, and Count fields.
Confirm Displayed Dies and Total Dies when using a count measure, then configure encoding, limits, and interaction settings.
